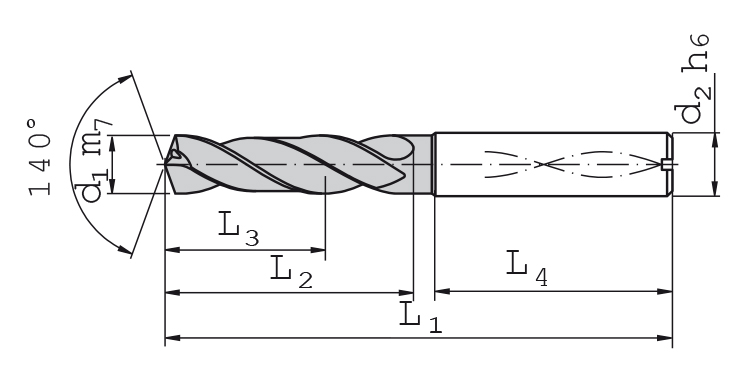

Type 200 / Type 201 Solid Carbide Twist Drills 3xØ
with brazed carbide head
Type
Drill-Ø: 3,00 – 20,00 mm
Spiral fluted, right-hand cutting, with spiral internal cooling
Shank Design: DIN 6535-HA;HE
Coating: TiAIN
Point Angle: 140°
Helix Angle: 30°
Cutting data: B1-11, B1-12
Type200: without internal coolant
Type201: with internal coolant
Inquiries and delivery
Please indicate the required diameter, the overall length and the driver style.
Each tool is supplied with the appropriate Torx wrench for the replacement of wear parts.
Tools fully equipped and ready to use.
We will be happy to answer your questions personally. Call us: +49 7123 964 200
